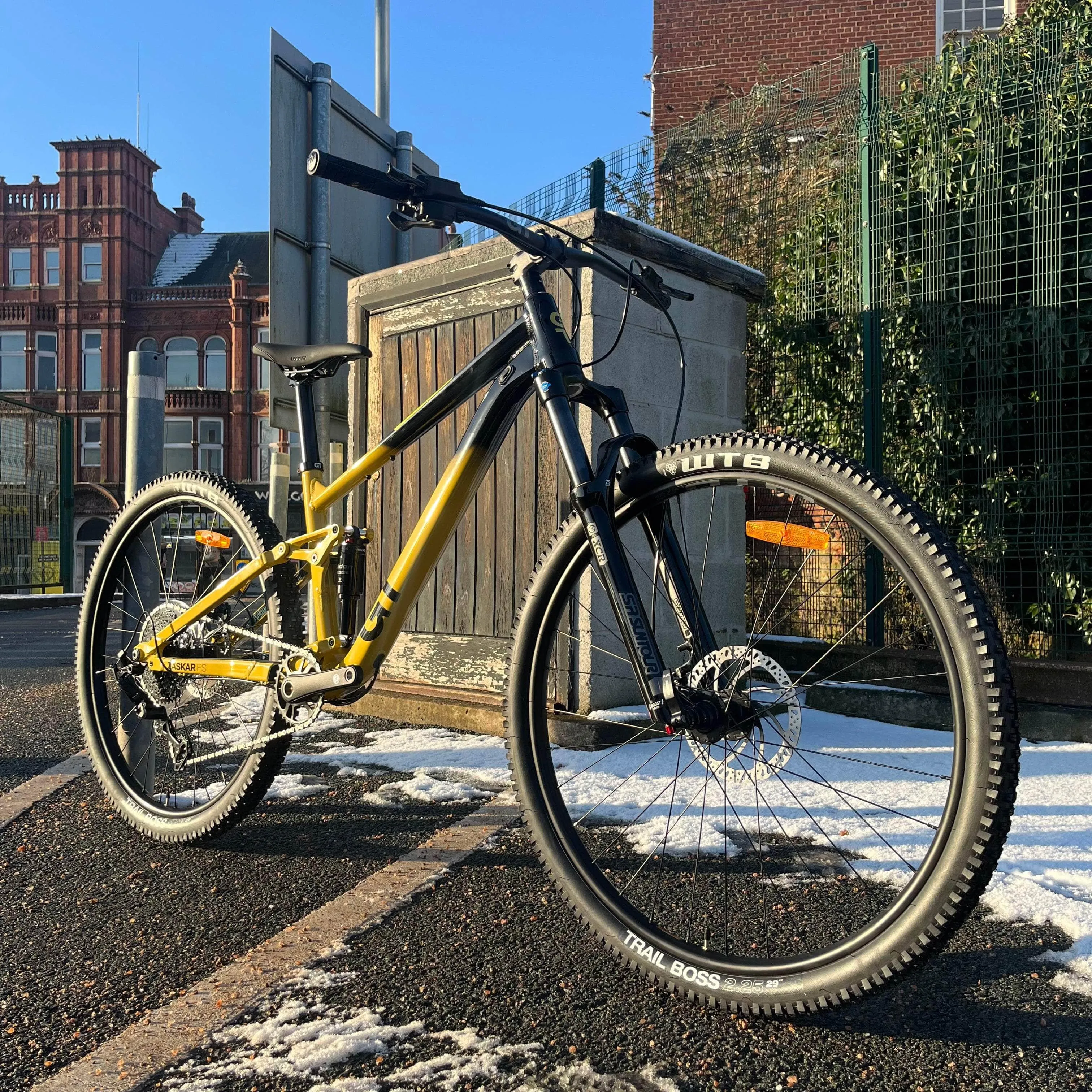

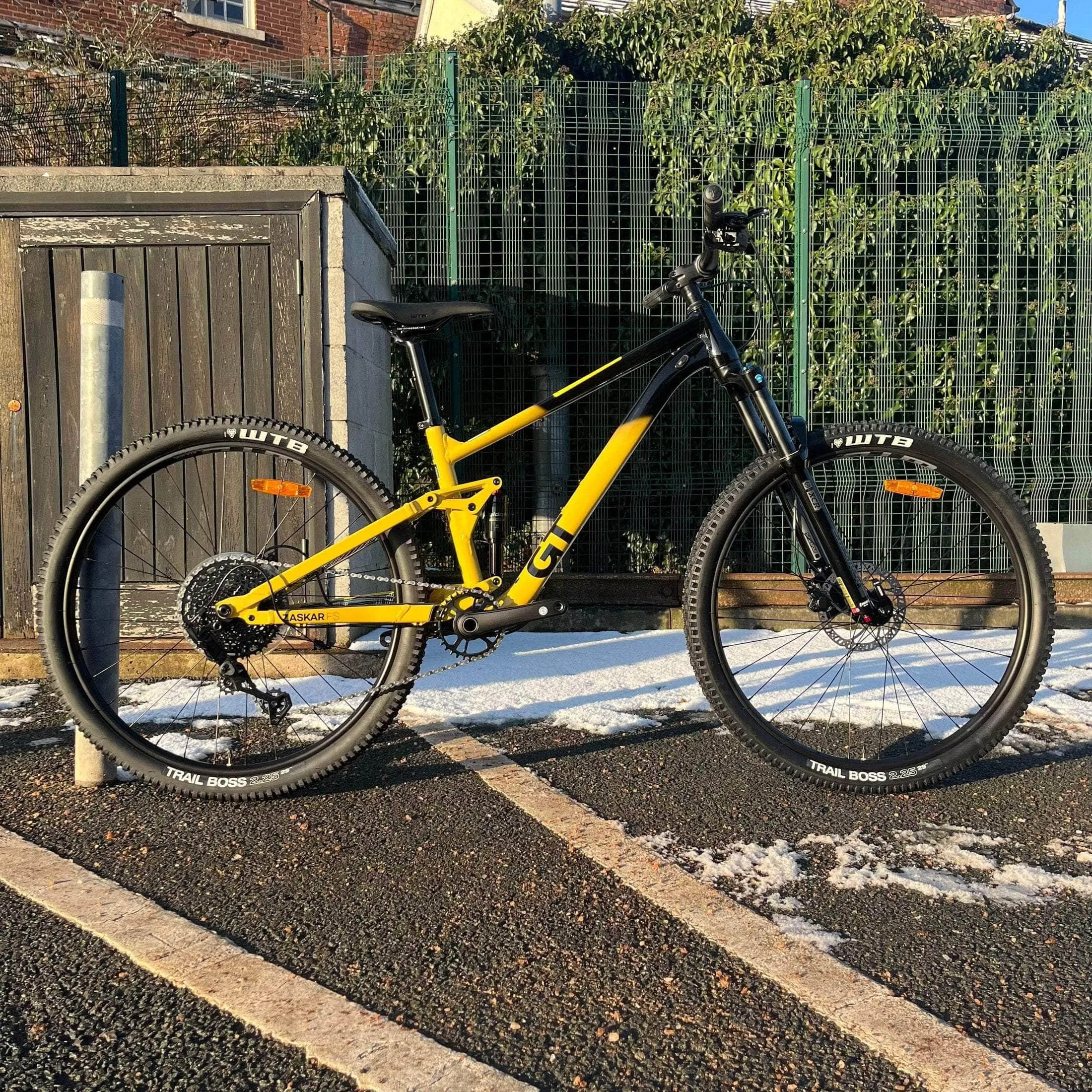

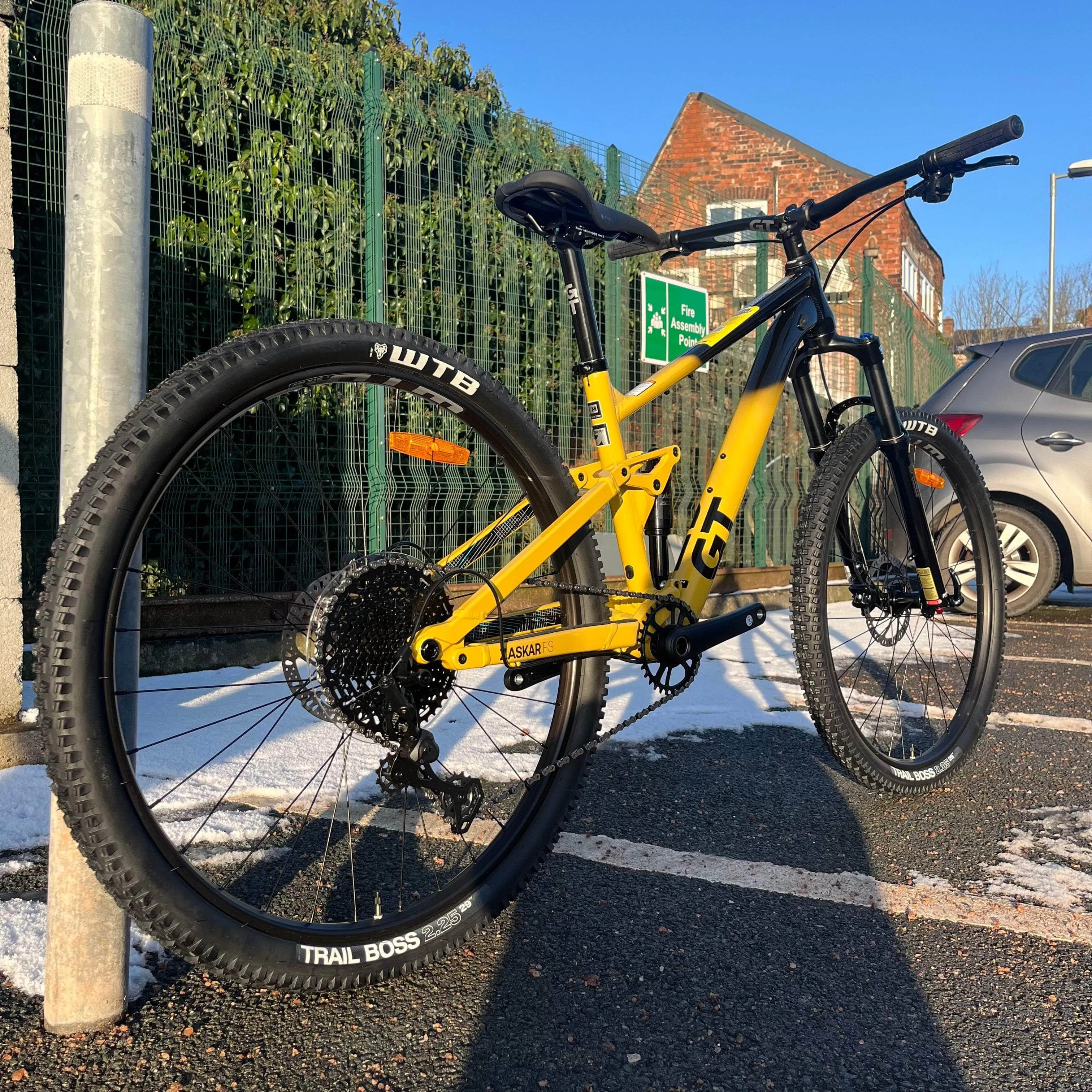

Riders that are new to the world of mountain biking need a bike that can take them anywhere to ride anything. They are looking for a ride performance that is tuned into the fun of mountain biking. They are looking for the Zaskar FS Sport. Great performing spec, like Micro SHIFT 10-speed drivetrain and SR Suntour suspension is a reminder that just because the new Zaskar FS Sport doesn’t have a big price tag doesn’t mean it can’t ride like a bike that does.
Frame

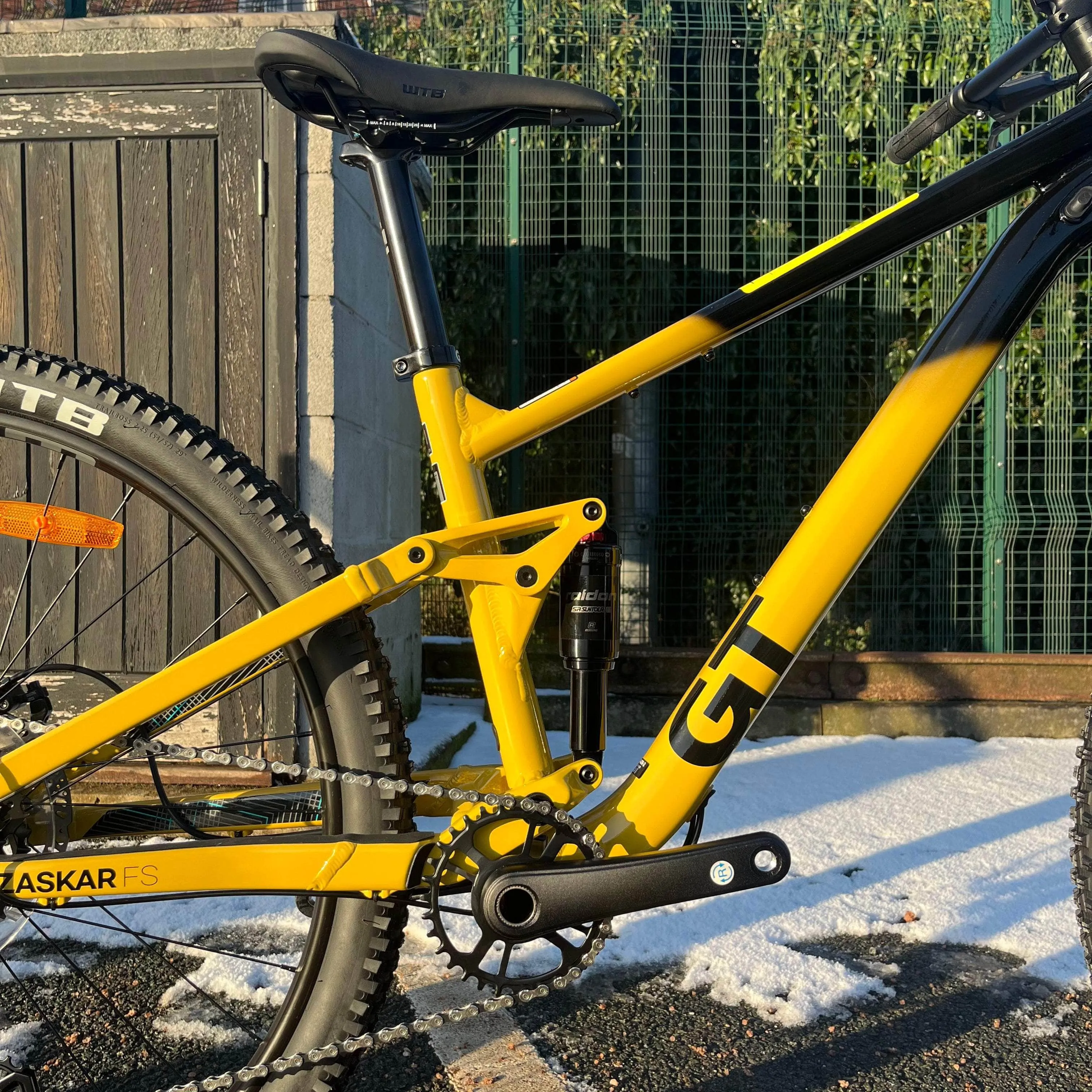

Frame: Zaskar FS Alloy 29” Frame, 120mm Travel, 12x148mm Thru-Axle, UDH
Sizes available: SM, MD, LG, XL
ForkS : R Suntour XCR34 Coil, 130mm, 15x110mm

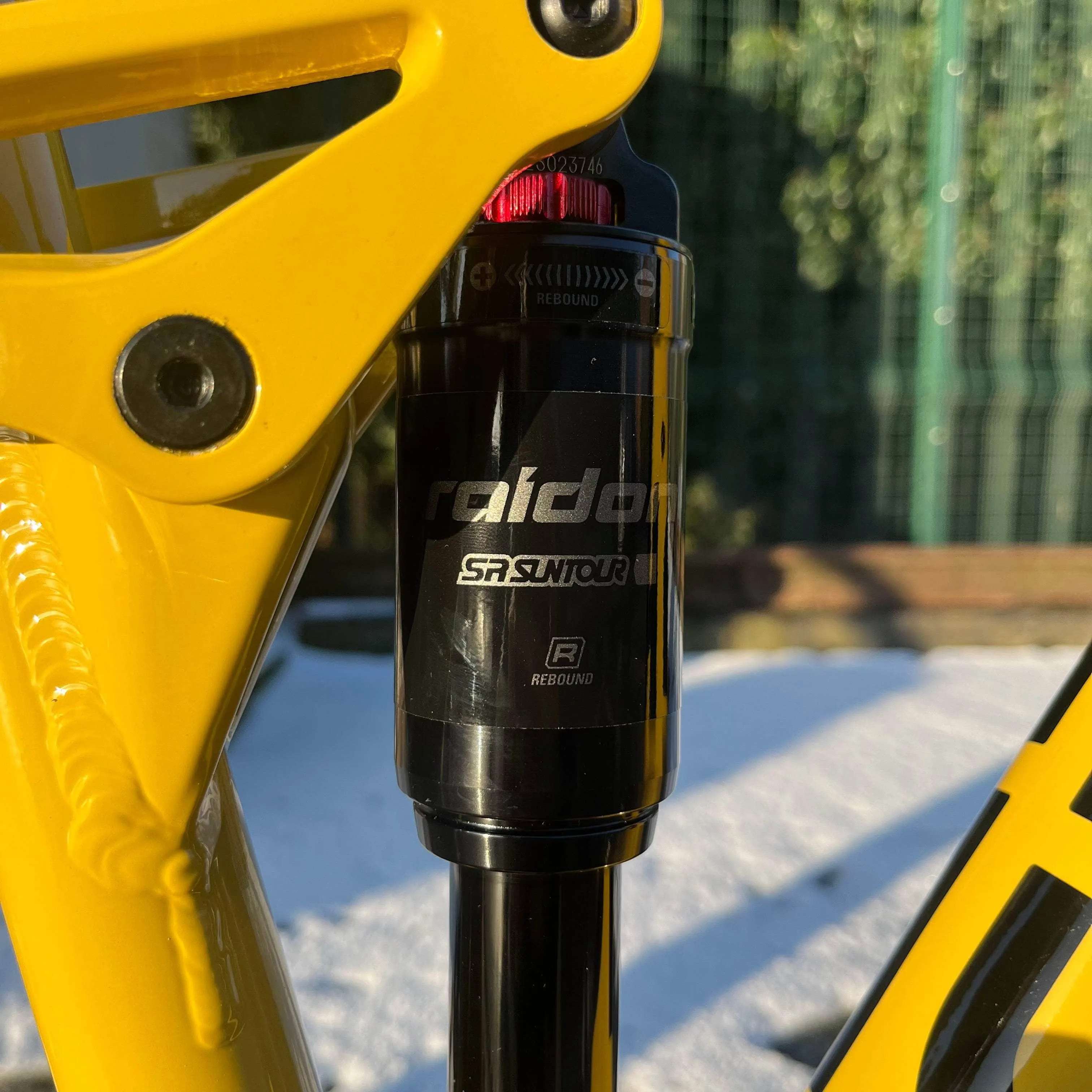

Rear shock: SR Suntour Raidon R, 190x40mm
Wheel size: 29"
Wheels
Rims: WTB STX i25 TCS, 32h, Tubeless Ready
Front hub: Formula, 15x110mm
Rear hub: Formula, 12x148mm, HG Freehub Body

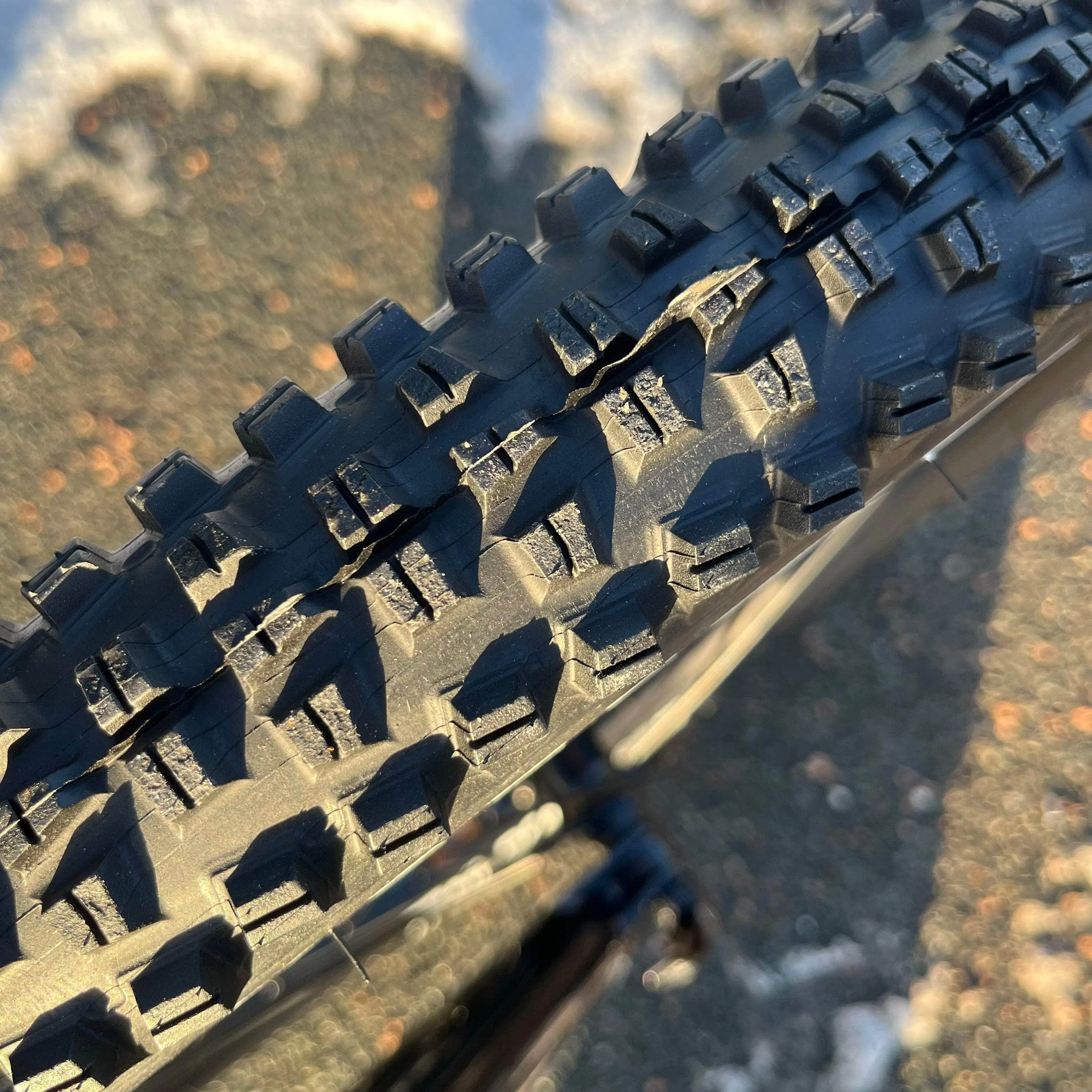

Front tyre: WTB Breakout Comp, DNA Compound, 29x2.3"
Rear tyres: TB Breakout Comp, DNA Compound, 29x2.3"
Drivetrain

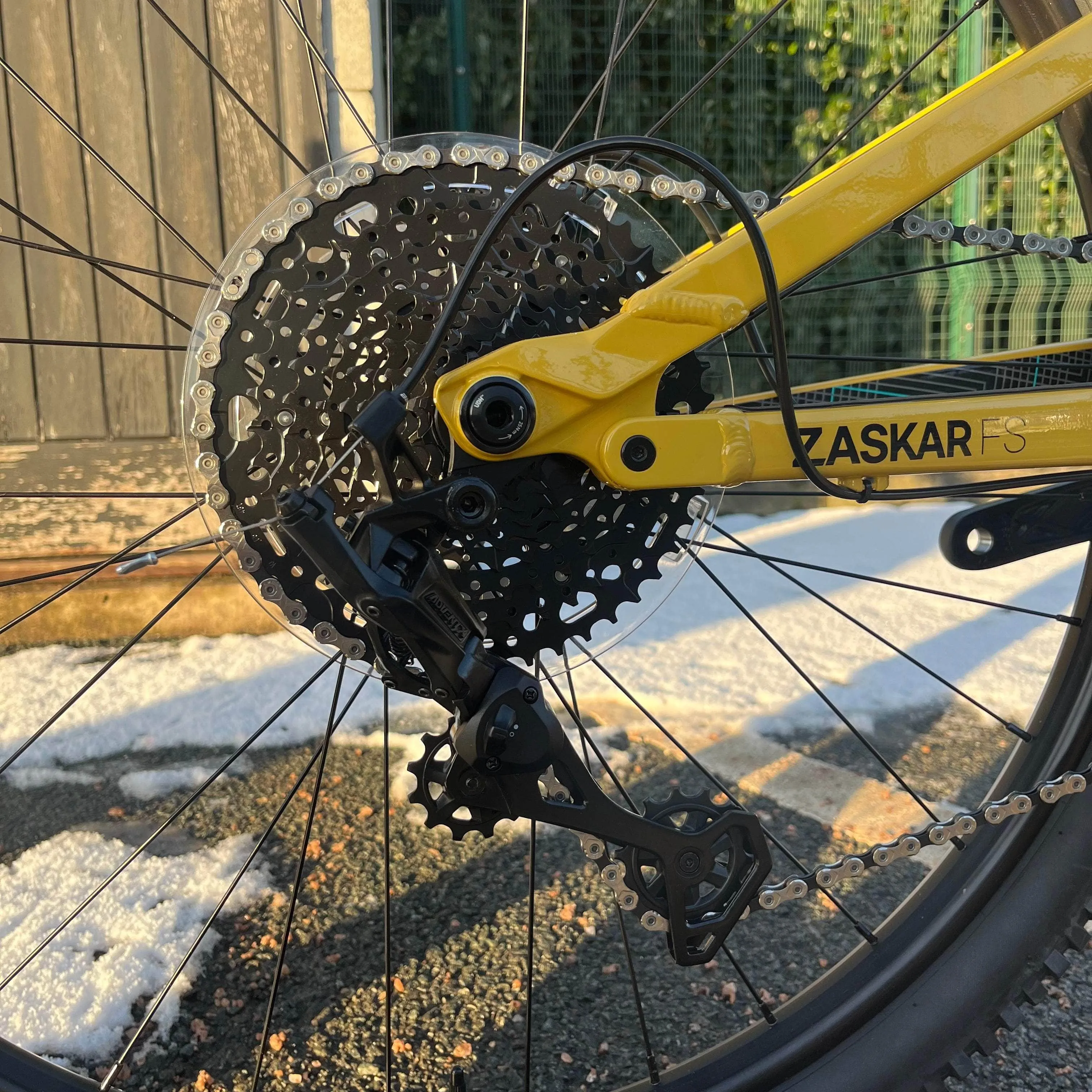

Rear derailleur: MicroSHIFT Advent X M6205
Shifters: MicroSHIFT Advent X, 10-Speed
Rear cogs: MicroSHIFT Advent X, 11-48T
Bhain: KMC X10, 10-Speed
Brank: Prowheel MPX, 32T
Bottom Bracket: Prowheel BSA, 73mm
Cockpit

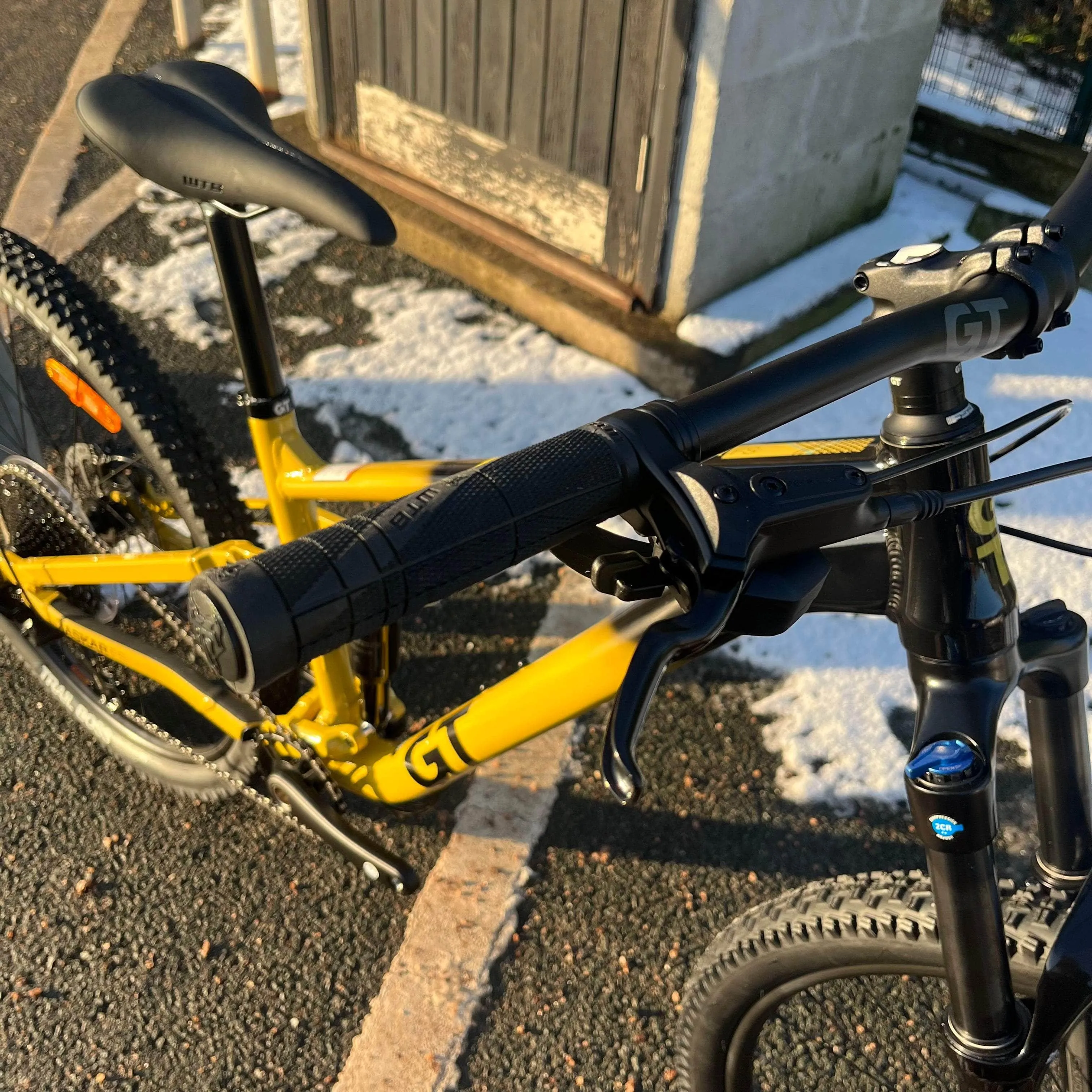

Handlebar: GT Alloy Riser Bar, 20mm Rise, 780mm, 5° Up, 8° Back (Width: S/M/L/XL - 78cm)
Stem: GT Alloy, 45mm
Grips: GT Mushroom
Headset: FSA No.57e
Seatpost: GT Alloy, 31.6mm (S/M - 350mm, M/L - 400mm)
Saddle: WTB Silverado
Brakes

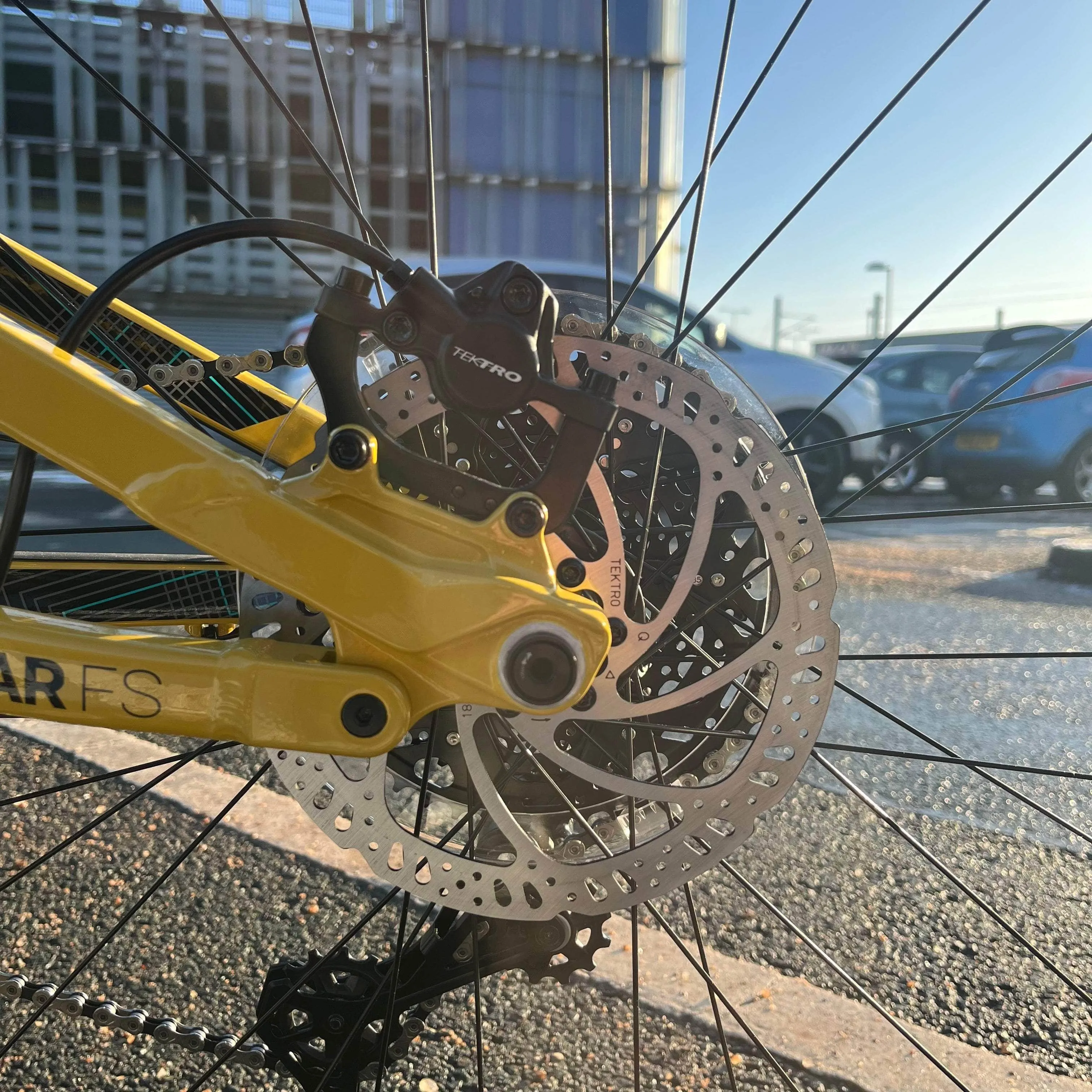

Brakes: Tektro M275, 160/160mm Rotors
Geometry
| Sizes (mm) | SM | MD | LG | XL |
|---|---|---|---|---|
| Seat tube length | 360 | 400 | 450 | 490 |
| Seat tube angle effective | 78 ° | 78 ° | 78 ° | 78 ° |
| Top tube horizontal | 551 | 578 | 605 | 642 |
| Top tube actual | 549 | 568 | 589 | 623 |
| Head tube angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Standover | 720 | 740 | 750 | 760 |
| Head tube length | 110 | 120 | 130 | 140 |
| Stem length | 45 | 45 | 45 | 45 |
| Wheelbase | 1192 | 1222 | 1252 | 1291 |
| Front centre | 745 | 774 | 804 | 843 |
| Chainstay length | 450 | 450 | 450 | 450 |
| Crank length | 170 | 170 | 175 | 175 |
| Bottom bracket drop | 36 | 36 | 36 | 36 |
| Bottom bracket height | 340 | 340 | 340 | 340 |
| Fork rake | 51 | 51 | 51 | 51 |
| Trail | 119 | 119 | 119 | 119 |
| Stack | 606 | 615 | 624 | 633 |
| Reach | 422 | 447 | 472 | 508 |
| Travel front | 130 | 130 | 130 | 130 |
| Travel rear | 120 | 120 | 120 | 120 |
