IS-FM Front Rear Flat Mount Caliper Adapter

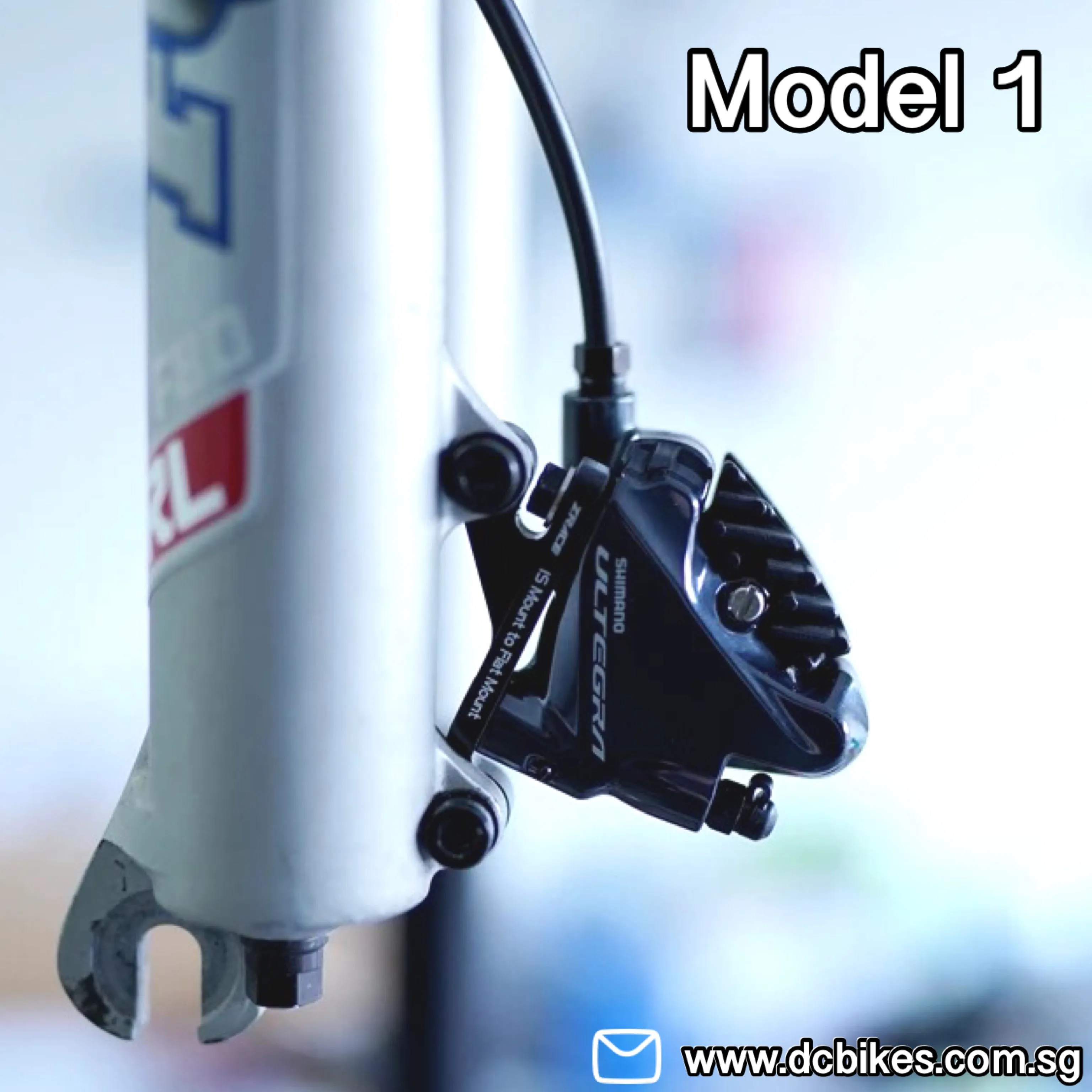

🌟 Model 1

This adapter allows you to use a flat mount caliper on a frame or fork that was designed using the IS mount standard

Compatibility:

Rear IS mount (Frame): This adapter will only work with 160 mm. rotors.
Front IS mount (Fork): This adapter will only work with 180 mm. rotors

🌟 Model 2

Flat Mount Adapter (160PM-160FM)This adapter allows you to use a flat mount caliper with a 160 mm. brake rotor on a frame or fork that was designed using the 160 mm. post mount standard.

Compatibility:

This adapter only works on frames or forks that have 160 mm post mounts.
It will only works with 160mm. rotors

🌟 Model 3

This adapter allows you to use a flat mount caliper with a 160 mm. brake rotor on a frame or fork that was designed using the 140 mm. post mount standard.

Compatibility:

This adapter allows you to use 160 mm. rotors on frames or forks that have 140mm. post mounts.
It will also work for 180mm. rotors on frames or forks that have 160 mm. post mounts

🌟 Model 4

This adapter allows you to use a flat mount caliper with a 140 mm. brake rotor on a frame or fork that was designed using the 140 mm. post mount standard.

Compatibility:

This adapter only works on frames or forks that have 140 mm. post mounts.
It will only work with 140 mm. rotors

Dcbikes Product Features:

Tested with Shimano, SRAM and Campagnolo flat mount calipers. 160 mm specific calipers like the ones made by Hope And Campagnolo will increase the rotor size by 20 mm. Front specific calipers like the ones made by Hope And Campagnolo will not work with these adapters

IMPORTANT : This will not be compatible with all IS mount frames and forks. The caliper and adapter extend out from the mounting surface. Clearance between the mounting holes is required. Please use the IS to Flat Mount Adapter Drawing (Letter, A4) to help determine if it will work for your application.

IS to Flat Mount Adapter Drawing:

Letter paper size: Letter Drawing
A4 paper size: A4 Drawing
When printed actual size the drawing can be used to check the compatibility of your frame or fork as shown below.

Details:

CNC Machined from 6061-T6 Aluminum, tumbled and anodized.
Weight: 15 g (without screws)
Weight: 20 g (with screws)
Installation:

Instructions
Caliper position is adjusted using shim washers. More washers or special tools may be required for proper adjustment

Package Includes :

1 X New Adapter Bolts as picture
